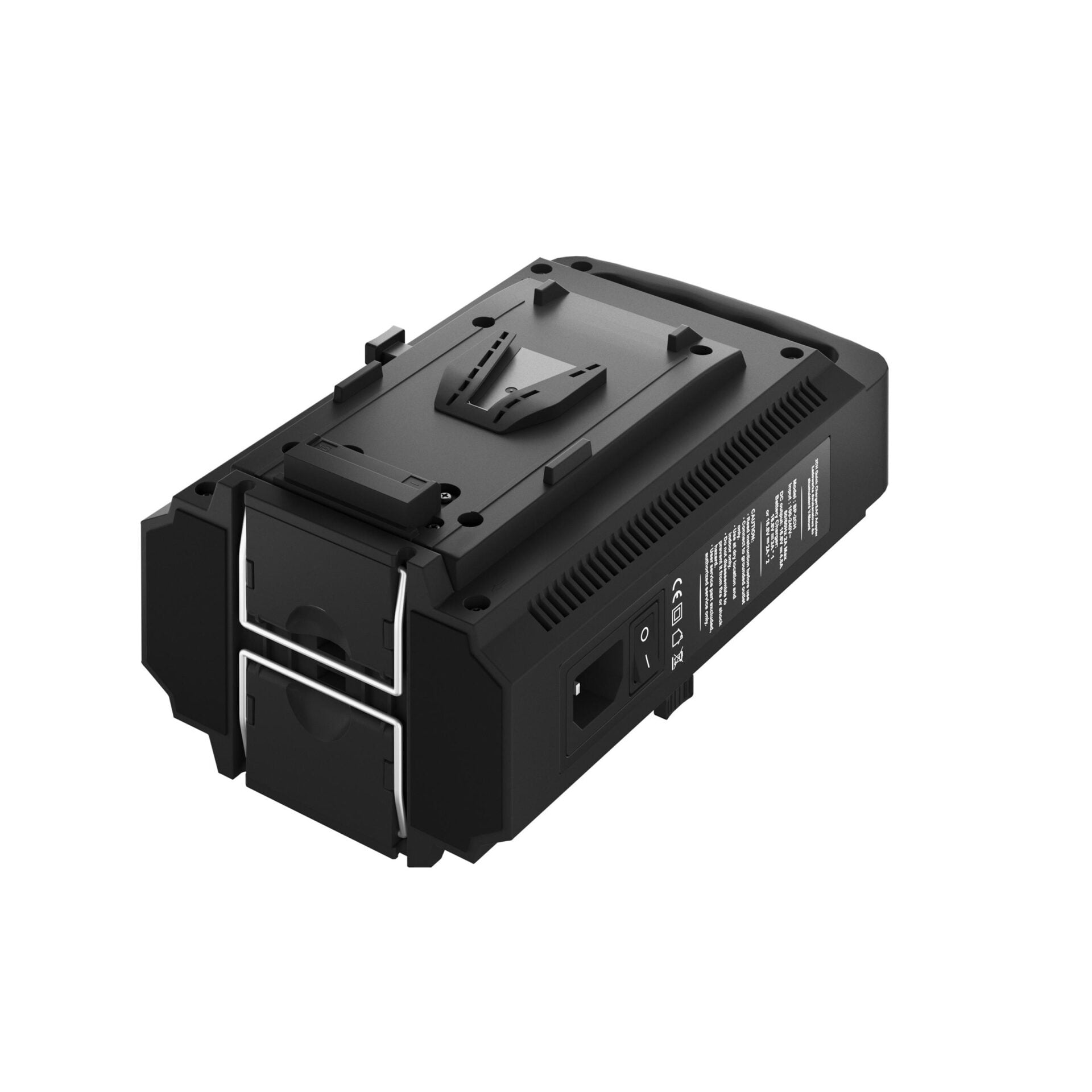

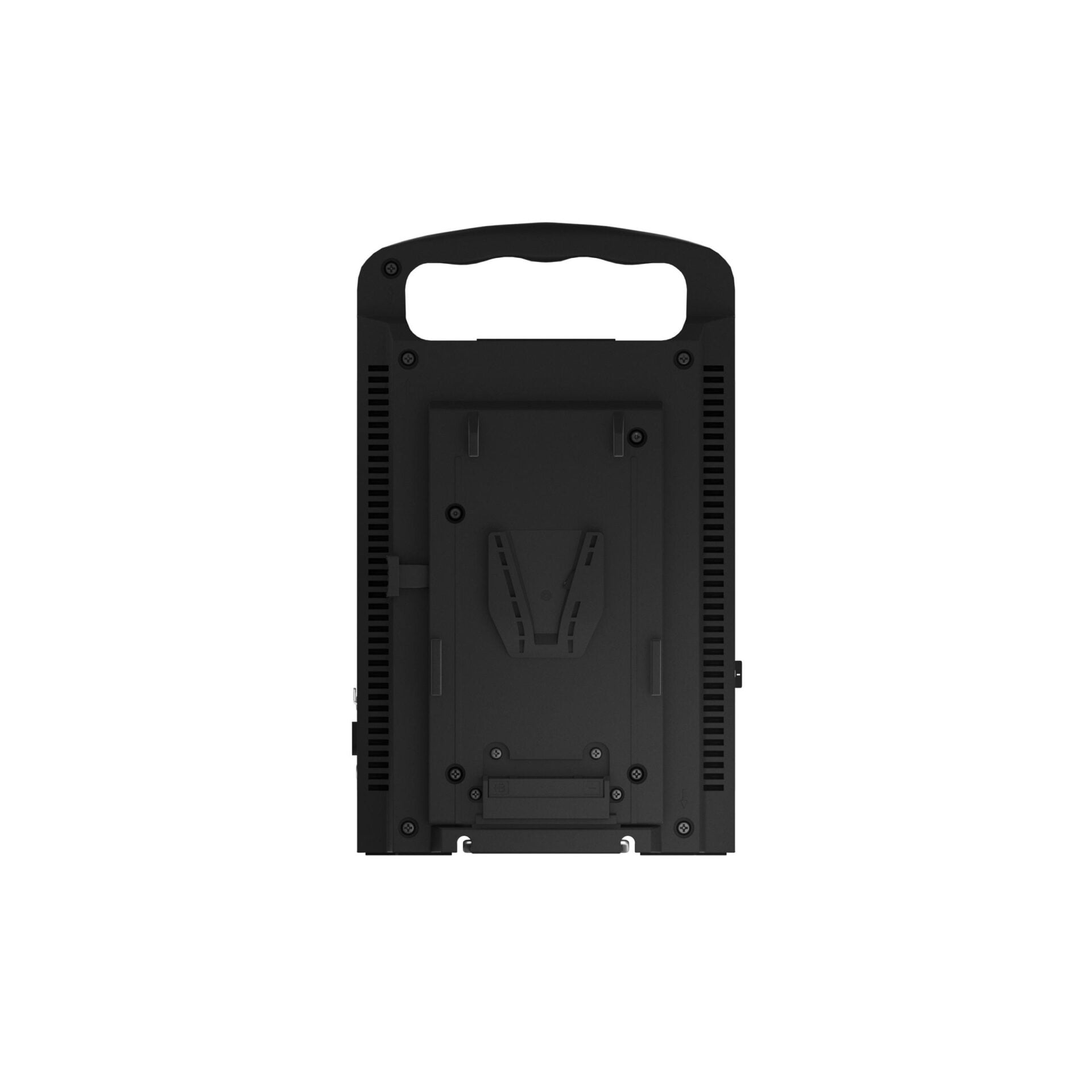

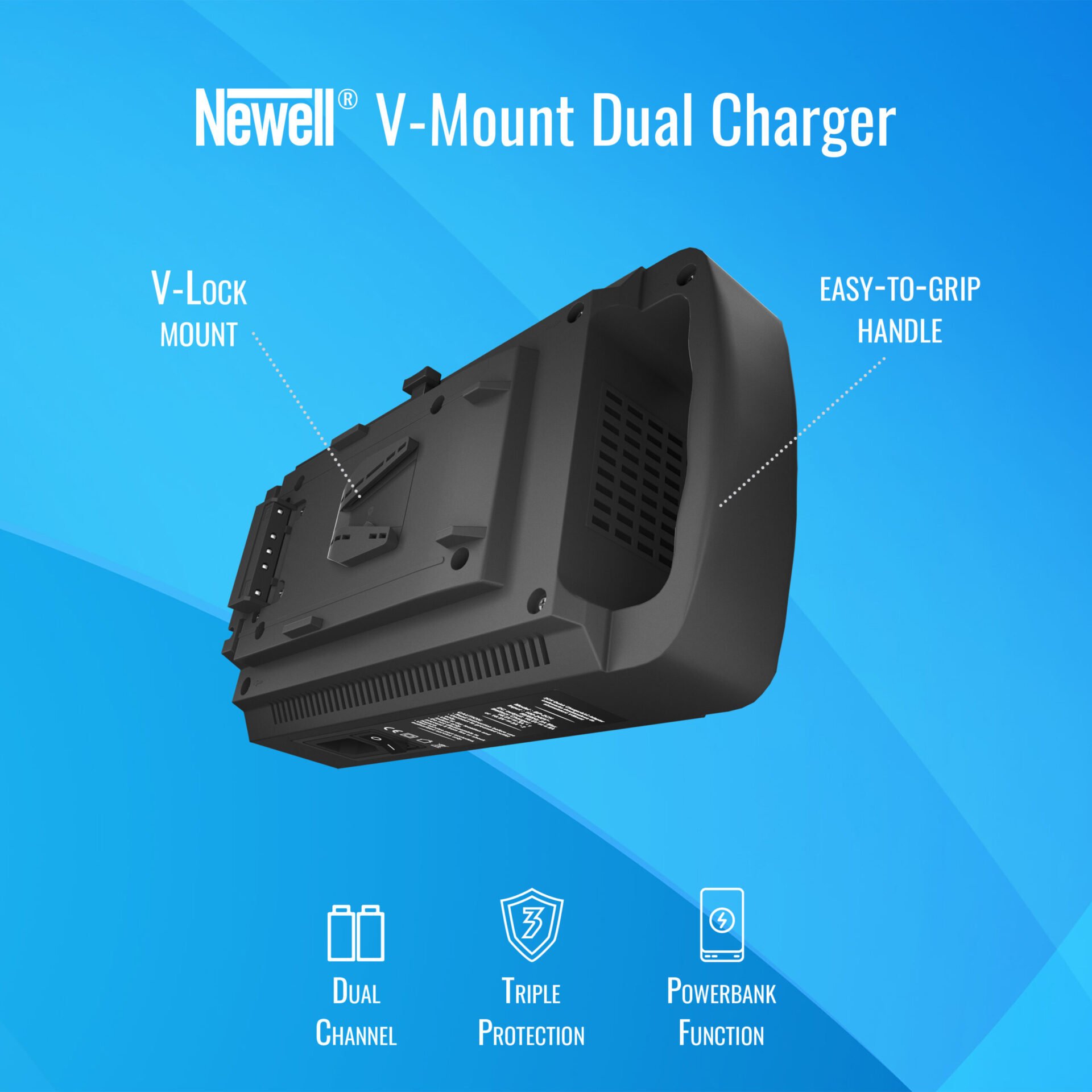

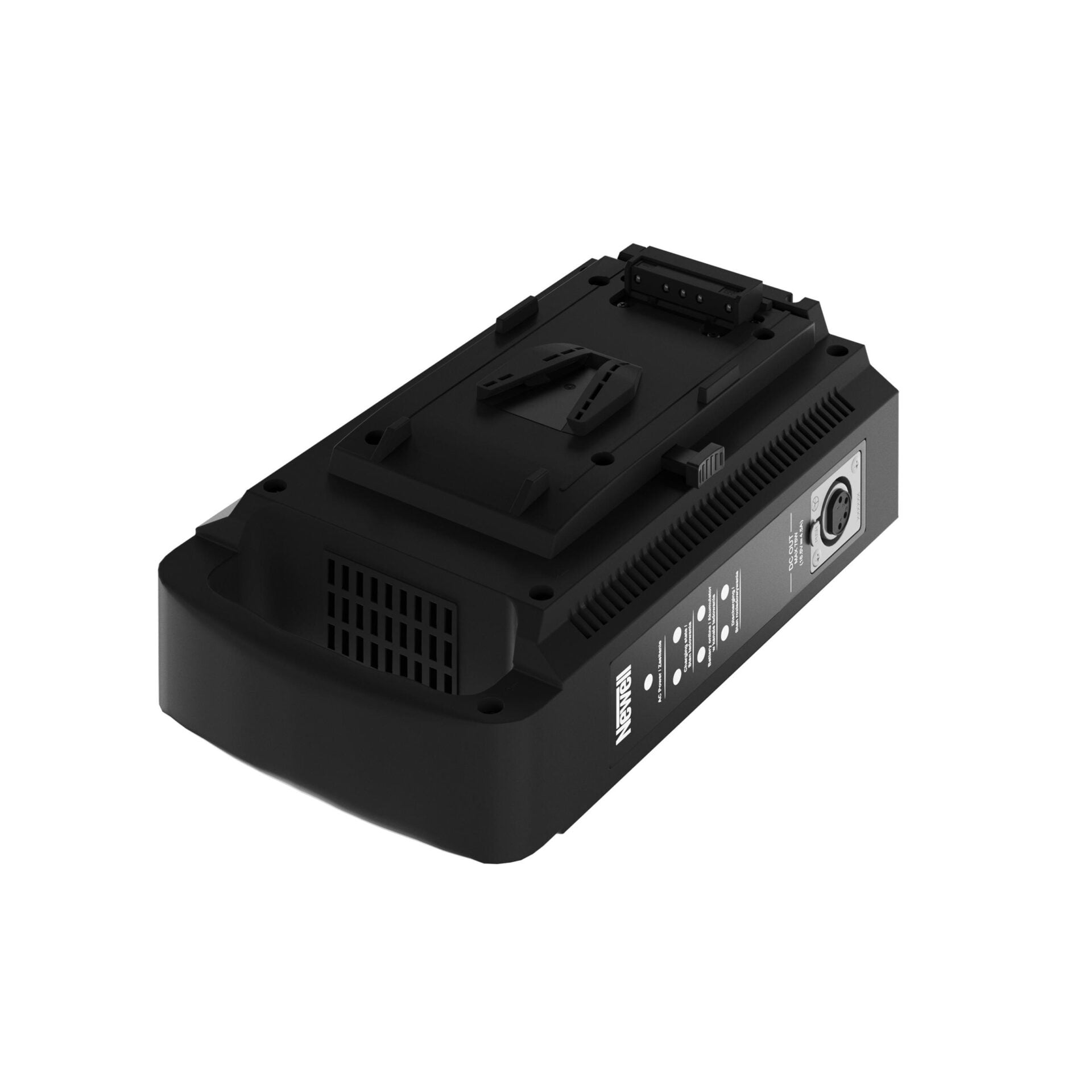

V-Mount/V Lock NEWELL 2CH Dual Quick Battery AC Charger with DC 16.8V Power Supply Output

Regardless of the capacity and number of batteries used, at some point there will be a need to charge them. This is when the Newell V-Mount battery charger comes to the rescue – a professional charger with two charging channels.

Two charging channels and safety

The Newell charger has two channels, so it will charge your batteries faster. Advanced MCU controllers regulate the parameters of the charging process. By protecting against overheating and overcharging, they ensure maximum cell life.

Power function

From the unit, using the batteries, you can directly power the camera thanks to the built-in XLR output (4 pins). The necessary cable is included.

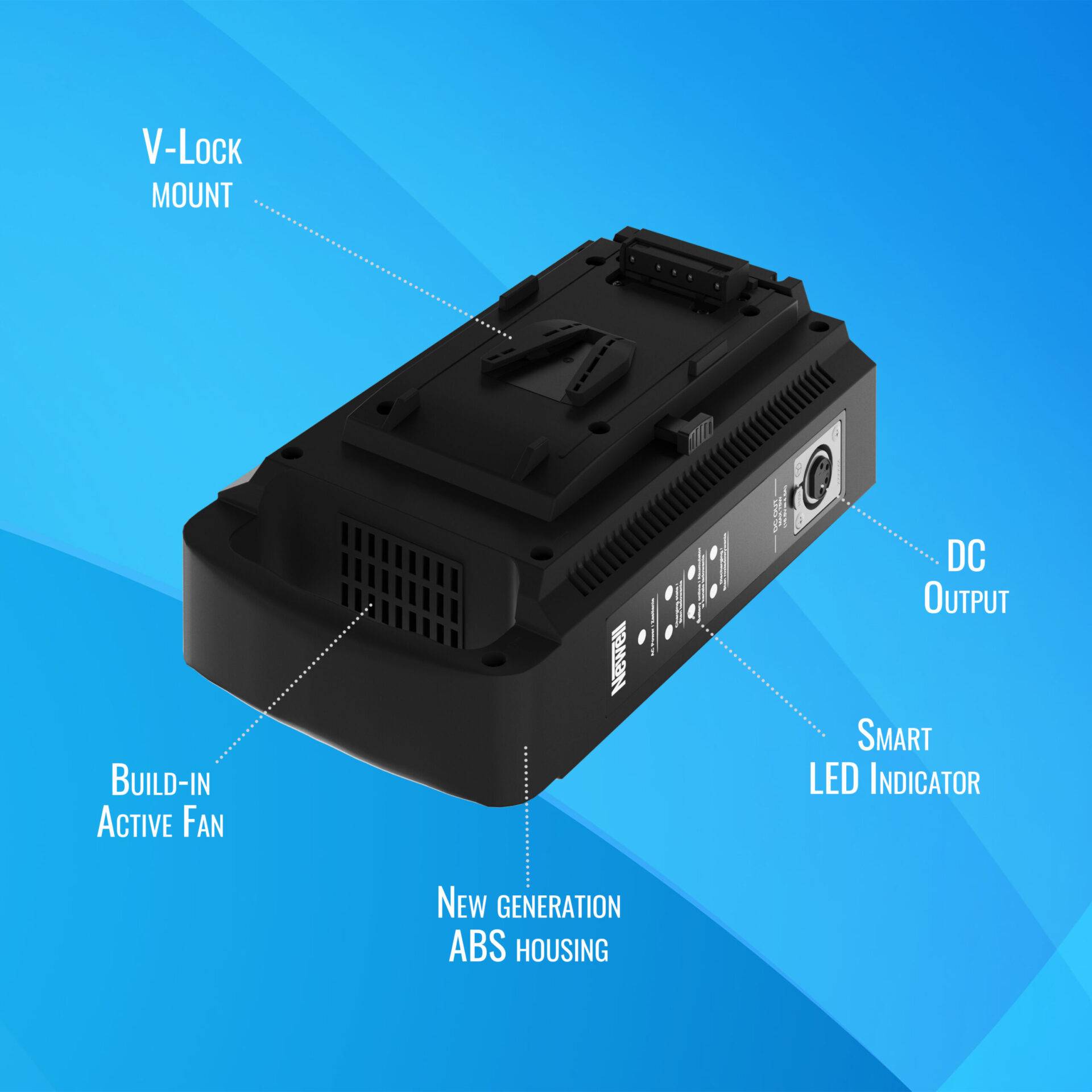

Clear indicators

The Newell charger has an easy-to-read indicator system, based on LEDs. This makes it easy to use the device and check the charging process.

Many years of experience

The Newell brand has been on the market for many years and has a long list of satisfied customers, both among professionals and amateur photographers.

The CHARGER IS COMPATIBLE WITH SONY SYSTEM BATTERIES, NEWELL BRAND BATTERIES AND SWIT, BEILLEN AND OTHER REPLACEMENTS

Specification

• Power supply:
  • AC 100-240 V; 50/60 Hz
  • charging current:
  • 16.8 V; 3 A x 1 battery
• 16.8 V; 2 A x 2 batteries
• DC output: 16.5 V; 4.5 A
• Outside temperature: 16.5 V; 4.5 A
• ambient temperature: 0 °C ~ 40 °C
• ambient humidity: 20 % ~ 90 % RH
• loader dimensions: 141 x 100 x 225 mm
• weight: 1150 g

Compatibility

• Sony: BP-L80S, BP-L40A
• Amita: BP-L100, BP-L130, BP-L160, BP-L200 E
• RED: S-8080S, S-8082S, S-8110S, S-8132S, S-8152S, S-8160S, S-8172S, S-8192S
• Beillen: BL-BP230, BL-BP130, BP-BL95, BL-BP65, BL-BP230RR, BL-BP160, BL-BP130, BL-BP95, BL-BP65
• WIT: D-8081S 88 WH, S-8082S 88 WH, S-8180S, S-8210S, S-8260S, D-8111R RED, D-8161R
• IDX: Endura-10S, 7S, HL9S, JL-2Plus, 10, HL9, Elite, VL-Plus
• Patona: BP-190WS, BP-160, BP-95, BP-65
• Other V-Mount batteries (V-Lock)
